Ultra-Long-Range Laser RTK — measure beyond limits
In stock
South INNO8 Pro
Product Details

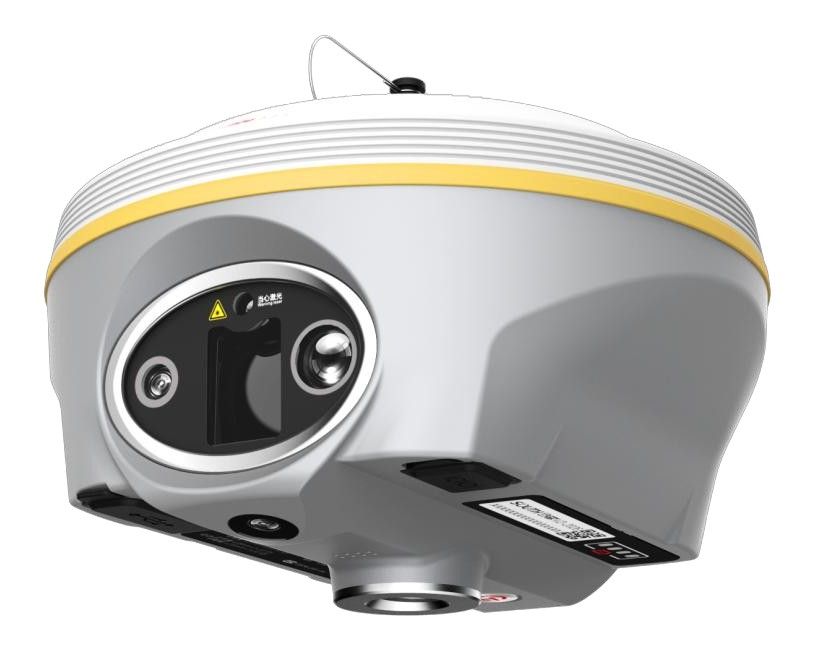

South INNO8 Pro — Ultra-Long-Range Laser RTK
The INNO8 Pro extends contactless surveying up to 200 m, combining a green laser rangefinder, a triple-camera system and a 6th-generation IMU in a 1.28 kg GNSS RTK receiver. Measure unreachable points from a safe position, capture coordinates automatically once the pole is stable, and output points, images, 3D models and point clouds through SOUTH's photogrammetry algorithms.
Key features
divThe INNO8 Pro extends contactless surveying up to 200 m, combining a green laser rangefinder, a triple-camera system and a 6th-generation IMU in a 1.28 kg GNSS RTK receiver. Measure unreachable points from a safe position, capture coordinates automatically once the pole is stable, and output points, images, 3D models and point clouds through SOUTH's photogrammetry algorithms.
Key features
- 1,698 GNSS channels (1,808 optional) — GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, SBAS, MSS L-Band (BDS PPP / Galileo HAS)
- RTK (UHF): horizontal 8 mm + 1 ppm, vertical 15 mm + 1 ppm
- RTK (NTRIP): horizontal 8 mm + 0.5 ppm, vertical 15 mm + 0.5 ppm
- Long static observation: horizontal 2.5 mm + 0.1 ppm, vertical 3 mm + 0.4 ppm
- Initialization under 10 s, reliability above 99.99 %, RTK initialization 2 to 8 s
- 3R green laser rangefinder: 150 m range (200 m in optimal conditions)
- Triple camera: 8 MP video, 8 MP laser-aiding telephoto, 2 MP AR stakeout
- Automatic camera zoom based on target distance during Laser AR measurement
- 6th-generation calibration-free IMU, tilt up to 120°, 400 Hz refresh, 0.05° pitch and roll, 0.15° heading
- Automatic point capture once the pole is stable, for fully hands-free operation
- On-board photogrammetry: hundreds of points from a set of photos or a video, processed directly on the controller
- Built-in 3 W UHF radio, 410-470 MHz, 8 to 10 km range (12 to 15 km in optimal conditions) with Farlink 2.0 Pro
- Compatible protocols: Farlink, Trimtalk, SOUTH, HUACE, Hi-Target
- 4G network, Bluetooth 5.0, Wi-Fi 802.11 b/g/n, NFC
- 64 GB internal SSD, automatic cycling storage, USB OTG, sampling up to 20 Hz
- SDAS service: network-free positioning
- Voice commands and real-time AI assistance, multilingual support
- 1.39 inch circular LED touchscreen (454 x 454), electronic bubble, intelligent temperature control
- Built-in 7.4 V 10,000 mAh lithium-ion battery, 30 h battery life
- Magnesium-aluminium alloy shell, 155 mm diameter x 93.6 mm, 1,280 g with battery
- IP68, -45 °C to +75 °C, withstands a 2 m pole drop onto concrete
- Formats RINEX 2.01 / 3.02, STH, RTCM 2.1 to 3.2, NMEA 0183 — VRS, FKP, MAC, NTRIP
- SurvStar field software, Web interface over Wi-Fi or USB, cloud platform (remote management, firmware updates)
